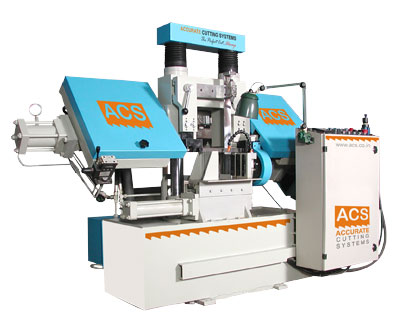

ACS DOUBLE COLUMN BANDSAWS

Double Column Bandsaw Machines
Double Column Bandsaw Machines

Double Column Bandsaw Machines
Double Column Bandsaw Machines

Double Column Bandsaw Machines
Double Column Bandsaw Machines


ACS Double Column Bandsaws Machines are built to last. They are designed to provide years of trouble free operation with minimum maintenance.


  • Double Acting Hydraulic Cylinder for Main Vice and Shuttle Vice.
  • Infinitely variable Feed Control Valve for Setting the Cutting Rate
  • Automatic height adjustment for saw frame to save idle time.
  • Length setting thru Digital Siko meters
    (0.1mm Least Count)
  • Adjustable Heavy-duty movable blade guide with tungsten carbide wear pads & guide rollers.
  • Automatic Machine OFF, in case of Blade Breakage
  • Auto indexing for shuttle
  • Hydraulic band tension.
  • Step Pulley with V-Belts
  • Rubber Bellows for Column Protection.
  • Ergonomically designed Electrical Control Panel.
  • Chain drive with gearbox driven rotating wire brush
  • Grounded and Hard chrome plated Double Columns

Standard Accessories
  • Friction type rotating cleaning wire brush
  • Positive Manual Blade Tensioning
  • Hydraulic full stroke clamping
  • Step Pulley with V Belt
  • Coolant tank
  • Tungsten Carbide face guides with ball bearings

Optional Accessories
  • Hydraulic bundle cutting attachment
  • Electrically Driven Swarf Conveyor
  • Lubrication system by hand operated pump for main columns
  • A.C. frequency control drive for infinite variation of band speed thru control panel
  • Powered wire brush unit
  • Blade Tension Meter for periodic checking of blade tension, optimizing tool life
  • Length setting thru SIKO Meter & Lead screw arrangement
  • Micromist coolant arrangement
  • Roller support stand one meter long with vertical guide rolls
