| Model |
ACS 300 DCM |
| Round (mm) |
300 |
| Flat (mm) |
300 x 300 |
| Band Dimension (mm) |
4100 x 34 x 1.1 |
| Cutting Speed m/min |
20-100 |
| Saw Motor Power kw/hp |
3.7/5 |
| Hydraulic unit power kw/hp |
.75/1 |
| Coolant pump power kw/hp |
.12/.16 |
| Length - mm |
2600 |
| Width - mm |
1200 |
| Height - mm |
1650 |
| App. Net Weight - kg |
1600 |
|
| |
| |

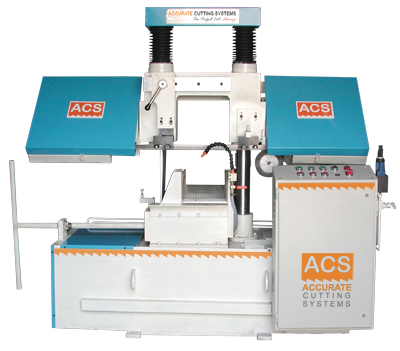

We are Manufacturer, Supplier, Exporter of Manual Double Column Bandsaw Machines 300DCM from Pune, Maharashtra, India.
Features Manual Double Column Bandsaw Machines Acs 300 DCM :
|
-
Double Acting Hydraulic Cylinder for Main Vice and Shuttle Vice.
-
Infinitely variable Feed Control Valve for Setting the Cutting Rate
-
Automatic height adjustment for saw frame to save idle time.
-
Length setting thru Digital Siko meters
(0.1mm Least Count)
-
Adjustable Heavy-duty movable blade guide with tungsten carbide wear pads & guide rollers.
-
Automatic Machine OFF, in case of Blade Breakage
-
Auto indexing for shuttle
-
Hydraulic band tension.
-
Step Pulley with V-Belts
-
Rubber Bellows for Column Protection.
-
Ergonomically designed Electrical Control Panel.
-
Chain drive with gearbox driven rotating wire brush
-
Grounded and Hard chrome plated Double Columns
|
| |
|
Standard Accessories
|
-
Friction type rotating cleaning wire brush
-
Positive Manual Blade Tensioning
-
Hydraulic full stroke clamping
-
Step Pulley with V Belt
-
Coolant tank
-
Tungsten Carbide face guides with ball bearings
|
| |
Optional Accessories |
-
Hydraulic bundle cutting attachment
-
Electrically Driven Swarf Conveyor
-
Lubrication system by hand operated pump for main columns
-
A.C. frequency control drive for infinite variation of band speed thru control panel
-
Powered wire brush unit
-
Blade Tension Meter for periodic checking of blade tension, optimizing tool life
-
Length setting thru SIKO Meter & Lead screw arrangement
-
Micromist coolant arrangement
-
Roller support stand one meter long with vertical guide rolls
|
|
|
